What's new

The headline changes in each version of Icon Map Pro, with links to the pages that explain them.

For every change and fix in each version, see the Release notes.

Version 1.1.0.11

New in 1.1.0.11

This version adds dialogs for adding and arranging layers, choosing basemaps and finding ArcGIS content. The Format pane still holds every setting. The new features are part of the Modern engine.

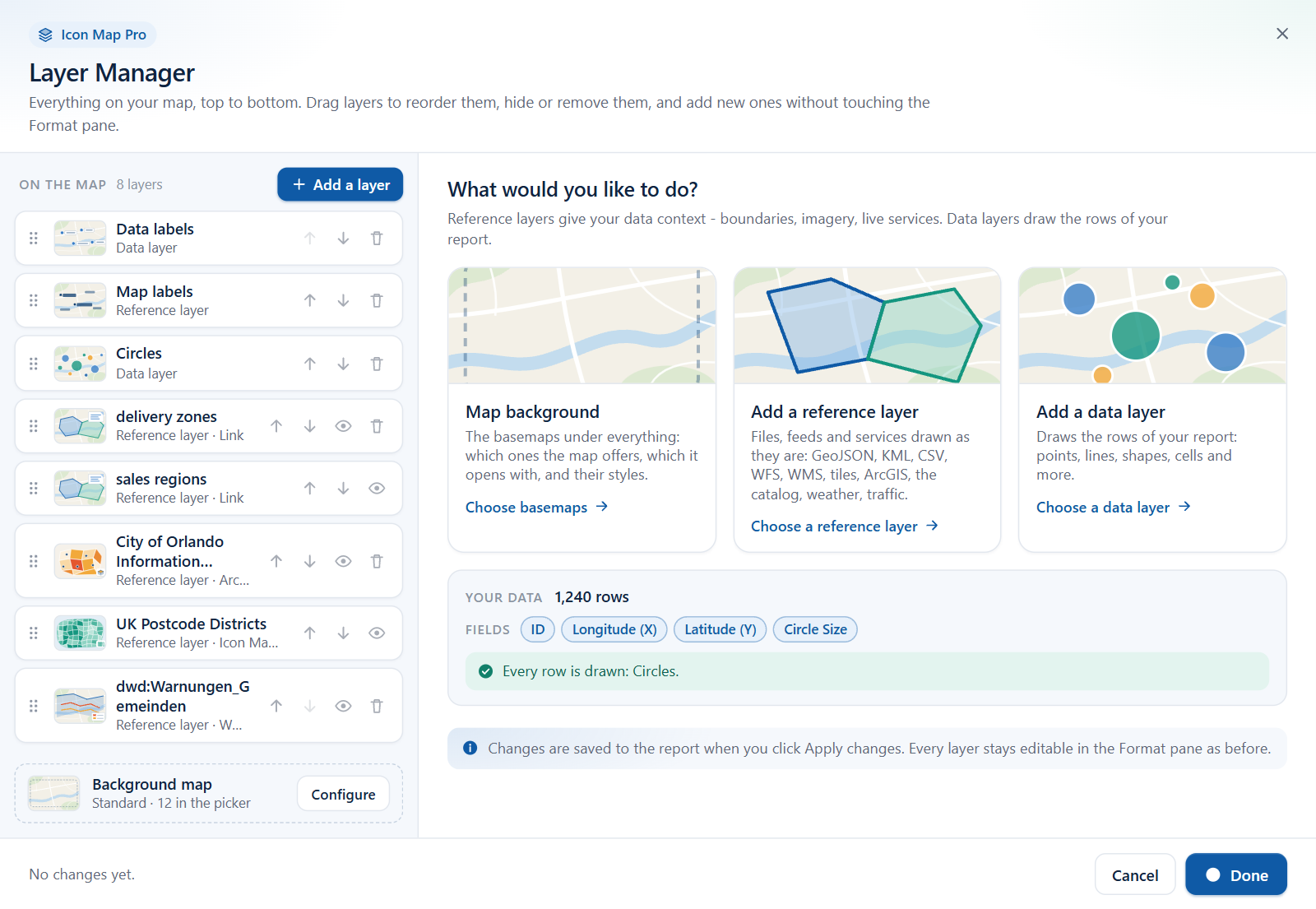

The Layer Manager dialog listing the layers on a map, with the home view offering to add a reference layer or a data layer
The Layer Manager, new in 1.1.0.11

Layer Manager

  • See every layer on the map in one list, in the order it is drawn.
  • Add data layers and reference layers step by step, with a check of each link before it is added.
  • Change the most used style options, drag layers into a new order, hide them or remove them.
  • Your data shows how many rows each layer draws. When a layer draws nothing, it shows you example rows, explains why they are skipped and suggests a fix.
  • Picking a layer in the "What kind of map are you making?" guide now opens the Layer Manager on that layer.

See Layer Manager, Add a layer and Check your data.

Basemaps dialog

  • Give a map a list of basemaps from any mix of providers, and choose the one it opens with.
  • Let report readers switch between them with a basemap picker on the map.
  • Use basemaps from the Icon Map Catalog, or a plain color.
  • Customize a basemap style layer by layer in the style editor.
  • Set hillshade, 3D terrain, light, sky, zoom and tilt in the same dialog.

The dialog is used by new maps. Maps that predate it keep their basemap settings in the Format pane. See The Basemaps dialog, Customize a basemap style and Basemaps overview.

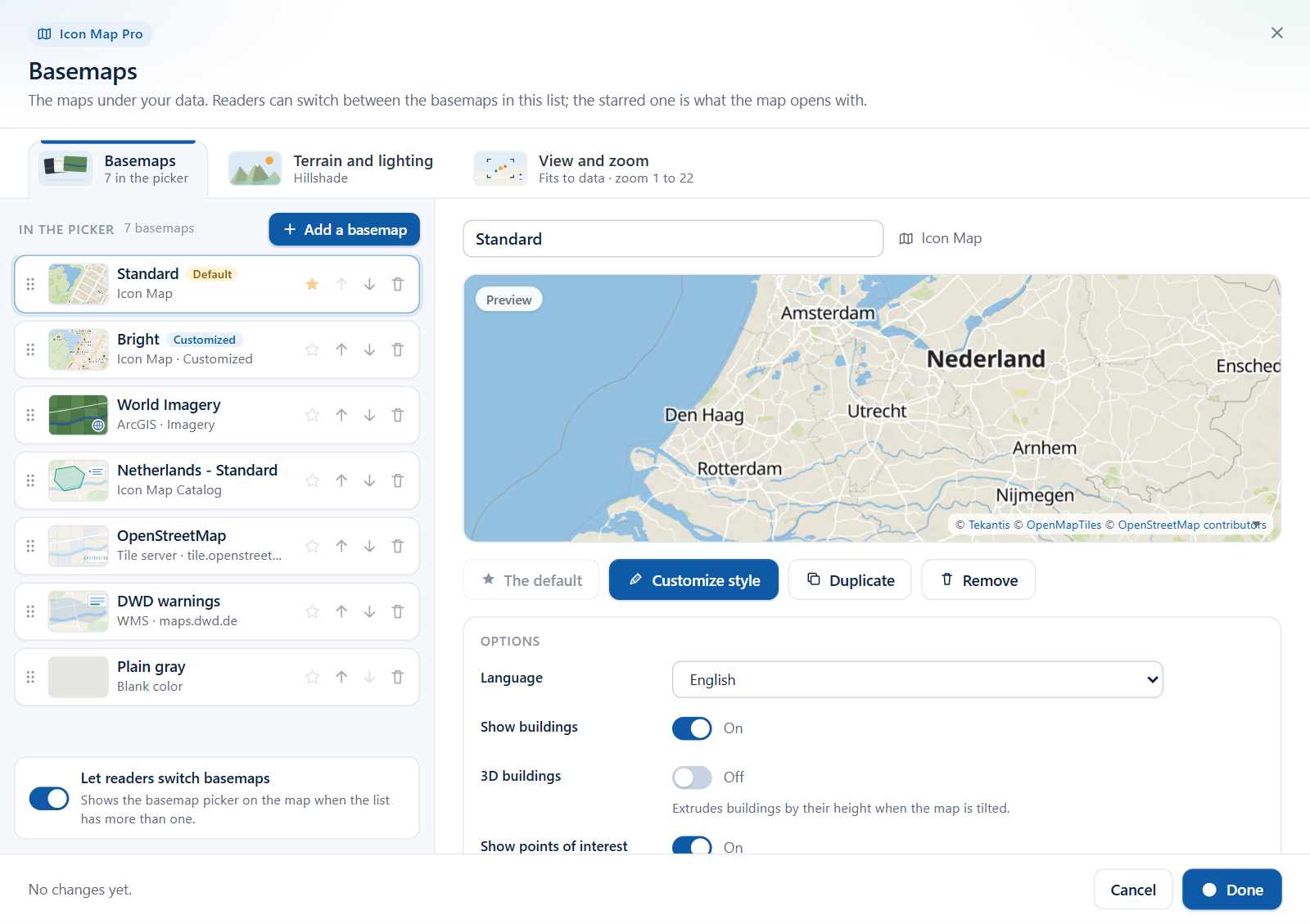

The Basemaps dialog with a list of basemaps on the left and a preview on the right
The Basemaps dialog, new in 1.1.0.11

ArcGIS

  • Browse ArcGIS searches your content, your organization, Living Atlas and public items, with a preview, so you no longer need to find and paste a service address.
  • ArcGIS reference layers accept more than feature layers: map and imagery services, vector tile services and whole web maps.
  • Layers can use their ArcGIS symbology, labels and pop-ups, and appear in the legend.
  • Sign in with ArcGIS connects with your own ArcGIS account.
  • An ArcGIS web map can be used as a basemap.
  • Public ArcGIS tiled services, styles given by their URL and web maps load without an API key. Only Esri's basemap styles need one.

See ArcGIS layers, Connect to ArcGIS and ArcGIS layers bound to data.

Reference layers

  • File layers added by link now read GeoJSON, TopoJSON, KML, KMZ, CSV files with coordinates, and WFS services, and can reload on a timer.
  • Raster layers accept a WMTS service link as well as a tile template.
  • WMS layers can show their legend.
  • When a server does not allow Power BI to read a link, the layer can be read through the Icon Map proxy.

See Files and feeds: GeoJSON, KML, CSV, WFS, Raster tiles, WMTS and WMS and API keys, authentication and the proxy.

Map view

  • Allow Tilt and Max Pitch control whether and how far readers can tilt the map.
  • New maps have World Copies on, so the map repeats as you pan past its edge.

See View, zoom and projection.

Languages

  • Basemap place names follow the report's language on Icon Map styles that have several languages. The Language settings start on Report language. Choose a language, English included, to keep that one.
  • The Layer Manager, the style editor, the upload window and the default legend and layer control titles are translated too.

See Languages and Icon Map basemap styles.

Changes to be aware of

  • In a report in German, Spanish, French or Portuguese, an Icon Map basemap or Map Labels layer whose Language was never set now shows place names in the report's language. To keep English names, set Language to English.
  • On the Modern engine the Layer Manager card replaces the Diagnostics card as the first card in the Format pane. The data summary is now Your data in the Layer Manager.
  • Some names in the Reference Layers and Data Layers cards changed on the Modern engine to match what the layers now accept: GeoJSON / KML / CSV / WFS, ArcGIS Layer and Raster / WMTS Layer.

Version 1.1.0.10

Version 1.1.0.10 introduced the Modern map engine and everything that depends on it.

A map in globe view with 3D columns rising from cities
Globe view and 3D columns arrived with the Modern engine in 1.1.0.10

The Modern engine

  • New maps use the Modern engine automatically. Existing maps stay on the Legacy engine unless you switch them in Format pane > Rendering > Map engine.
  • Globe projection, with a button on the map to switch between the globe and the flat map.
  • Tilt and rotate the map, and set the pitch and bearing it opens with.
  • 3D terrain, hillshade over any basemap, and sky and light settings.
  • An Antialiasing setting for smoother edges.

See Modern and Legacy engines, View, zoom and projection and Terrain, hillshade, sky and lighting.

New ways to draw data

  • 3D columns: a column at each point, with its height set by the Column Height field. See 3D columns.
  • New line shapes: Flow Arcs, Flow Tree, Routes and 3D lines, plus dash patterns that can differ on each row and animate. See Lines and Routes.
  • More cell grids: S2, A5 and Geohash alongside H3, from coordinates or from cell IDs, and custom shapes that count points inside polygons you upload. See Cells: H3 hexagons and grids.
  • Label styles: Glass, Dark Glass, Card, Neon and Halo Text, with titles, images and footers, and labels that appear on mouse over or when selected. See Data labels.

Help while you build

  • The "What kind of map are you making?" guide appears when your rows do not reach a layer. It shows which fields each layer type needs and turns a layer on when you pick it. See Choose a layer type.
  • Blank text cells now count as empty, so tables from CSV files, Excel and Power Query can feed several layers without extra measures. See Combine several layers in one map.

Languages

Icon Map Pro is available in German, Spanish, French and Portuguese as well as English. The visual follows the language of the Power BI report throughout: the Build and Format panes, the map controls, the legend, dialogs and messages. See Languages.

Selection and performance

  • The pointer changes over items that can be selected, and selecting a selected item again clears the selection.
  • Lines from WKT and 3D shapes highlight when selected.
  • Formatting changes no longer redraw data that has not changed, and highlighting large selections is quicker.

See Selection, cross-filtering and highlighting.

Changes to be aware of

  • The Modern engine and Icon Map basemaps need WebGL 2. See Supported environments and limits.
  • New maps zoom to fit their data with 50 pixels of padding. Existing maps keep their padding.
  • Lines that do not have both an origin and a destination are no longer drawn.

Earlier versions

Version 1.1.0.9 and earlier are covered by the documentation for 1.1.0.9 and earlier. The Release notes list every version.
